Charge Your EV with Solar Surplus: A Step-by-Step Introduction to evcc Setup

Charge Your EV with Solar Surplus: A Step-by-Step Introduction to evcc Setup

· 14 min read · < 100 views

Two weeks ago, I took the next step in optimizing our smart home energy setup by implementing evcc (Electric Vehicle Charging Controller). This post describes my journey to a fully automated solar surplus EV charging for our car.

Are you the proud owner of an electric car? Do you charge it at home? Have you installed a photovoltaic system on your roof? If so, then this article is exactly what you’re looking for!
Look no further if you want to find the best and most cost-effective ways to charge your car with as much solar power as possible.

I’m becoming a big fan of evcc, and I’m happy to share my experiences with it so far. To avoid making this post too long, I will give an introduction to evcc and explain how to set it up and configure it. In a later post, once we have charged our car a few more times, I will share what I have learnt about the user experience and whether the promised energy savings can really be achieved.

What is evcc and Why Should You Care?

#

evcc.io is an open-source energy management system specifically designed for electric vehicle charging optimization. Think of it as the brain that decides when, how fast, and with what energy source your EV should charge.

The core functionality of evcc revolves around surplus solar charging - using your excess photovoltaic energy to charge your electric car instead of feeding it back to the grid.

But it goes beyond simple solar charging, it also handles:

  • Intelligent load management based on current household consumption
  • Dynamic pricing integration to charge when electricity is cheapest
  • Charging planning to ensure your car is ready when you need it
  • Home Assistant integration for seamless automation

What sets evcc apart is its manufacturer-agnostic approach. evcc isn’t proprietary and works with all sorts of brands and devices. At the time of writing this post 106 EV charger brands, 28 car brands, 21 heat pumps & electric heaters, 71 solar inverter & storage systems and 82 energy meters are supported.

Yes, there are also other (commercial) solutions for smart electric car charging, for example from energy providers or EV charger manufacturers, but which solution covers such a broad set of devices and vehicles?

Where can you combine a Keba P30 EV charger, a SolarEdge solar inverter and a BYD battery storage system with a Polestar vehicle, all of which work together intelligently?

How does evcc Work

#

The basic functions of evcc are pretty simple. The software handles your electricity sources, like our photovoltaic system and the grid, the state of the home battery, and the charging status of your electric vehicle.

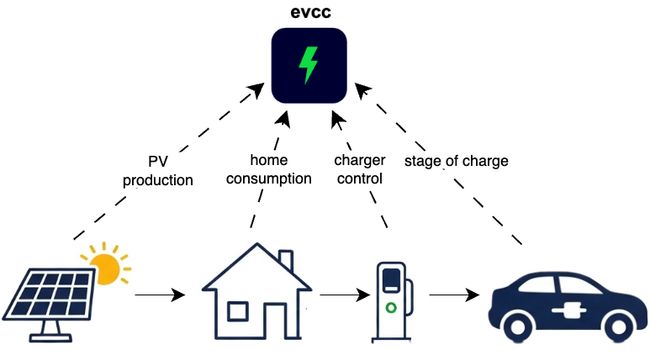

Energy flow and control diagram
evcc controlling the energy flow

It uses all the data points to work out the best charge rate and time for your electric vehicle, based on how much solar power is being produced at the moment and the electricity tariff. The idea is to make sure you’ve got as much surplus energy as possible, while also keeping grid electricity costs as low as possible.

The software runs always on your local hardware. It is cloud-free, privacy-friendly and independent of any charging, solar or electric vehicles brands. It is an open-source development, and the entire codebase can be found on GitHub.

As they don’t receive any external funding from vendors, the developers have chosen a community-funding-based approach to maintain the software. To use some of the commercial EV charger devices, you will need a sponsoring token. See the sponsorship documentation for more details. If you are not yet sure whether evcc is right for you, don’t worry — you can also get a trial token and test whether all your hardware works together properly.

Understanding the Charging Modes

#

evcc offers three distinct charging modes, each serving different scenarios. In fact, there are four modes if we include “off”.

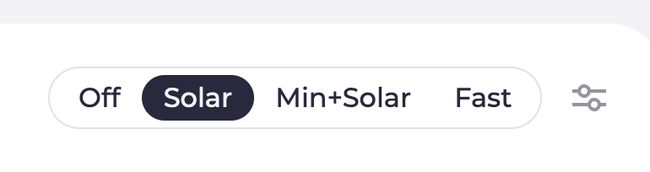

evcc charging modes
evcc charging modes

PV Mode (Solar Only)

#

This is my favorite mode, as it only charges when there is sufficient solar surplus. Charging begins when your PV system generates more energy than your household uses, and the power is constantly adjusted to minimise grid import and export.

Min+PV Mode

#

It offers the best of both worlds, starting to charge immediately at a minimum power level (typically 6A) and increasing the power when a solar surplus is available. This ensures that charging always occurs while maximising solar utilisation.

The beauty of evcss approach is the continuous power adjustment. Unlike simple on/off solar charging solutions, evcc adjusts the charging current in real time based on available surplus, ensuring that every watt counts.

You can also configure a minimum SOC for the car battery. If the current charging state is below this level, evcc will charge in fast mode until the minimum SOC is reached and than switch to solar surplus charging. This ensures that you have enough power the next time you need the car.

Fast Mode

#

Maximum power charging, regardless of solar production or electricity prices. This is the ‘I need to leave in an hour’ mode, which charges as quickly as possible using any available solar power and grid power if necessary.

Off Mode

#

Charging is completely disabled, even when a vehicle is connected. This mode can be useful for maintenance or when you want to prevent any charging.

Battery Support

#

If your photovoltaic installation includes a home battery, it can support EV charging.

On days when it is slightly cloudy and the clouds are moving quickly, there can be fluctuations in the electricity yield of the solar cells. In such cases, the battery backup is very advantageous as it can provide short-term power to bridge the gap when shade is cast over the cells. This means that charging the vehicle does not need to be interrupted so frequently. Of course you can adjust the home battery SOC levels according to your needs.

Installation Options: Why I Chose the Home Assistant Add-On

#

evcc offers several installation methods, each with its own advantages:

  • Linux/Raspberry Pi Native
    Direct installation via APT repository offers the best performance and easiest troubleshooting. This is ideal if you have a dedicated Linux system or Raspberry Pi. In my opinion, this setup is more suitable for advanced users, as you need to ensure that the entire system is kept updated and patched, and that you back up your data yourself, etc.

  • Proxmox
    If you already use Proxmox as a virtualisation platform, this is probably where you want to host evcc as well. The installation process is similar to that for a dedicated Linux server.

  • Docker Installation
    Docker is perfect for NAS systems such as Synology, Unraid and QNAP, providing isolation and easy updates. However, this will require some experience with Docker. There are community guides dedicated to running an evcc Docker setup on Synology and QNAP NAS systems.

  • macOS
    The setup on macOS is pretty easy, as evcc can be installed via Homebrew within minutes.

  • Windows
    It is possible to run evcc on Windows, but the creators do not really recommend it as it is Linux software.

  • Home Assistant Add-On
    This is the route I chose as an Home Assistant user, and for good reason. Since our entire smart home runs on Home Assistant, having evcc as a native add-on was the obvious choice for me. It provides me with:

    • Seamless integration with existing Home Assistant entities
    • A single interface for managing all smart home devices
    • Unified configuration, logging and troubleshooting
    • No need for an additional mobile app

The installation process using the Home Assistant Add-On was straightforward:

  1. Add the evcc repository to Home Assistant - you can do this via the button on the docs page or manually
  2. Install the add-on from the Add-on Store
  3. Configure through the built-in assistant or manual YAML editing

Configuring Our Smart Charging

#

evcc is configured via a central file, evcc.yaml. For a new setup, it can be created either with the configuration assistant or manually. The configuration assistant guides you step by step through the configuration of the various devices (photovoltaic system, electricity meter, house battery, EV charger and electric car).

A template file is provided for manual configuration. This provides the basic structure, and you can add your own devices and vehicles. There is extensive documentation for individual solar inverters, electricity meters, energy tariffs and vehicles, including customisable examples.

If something does not work or you have problems with the configuration, evcc also offers a debug mode to check the configuration of the individual devices and correct it if necessary.

In addition, evcc can be integrated into Home Assistant with just a REST and an MQTT API, allowing it to be integrated almost anywhere.

Our setup

#

As you could already read in my Going Green articles, our photovoltaic system with SolarEdge inverter with a 10 kW BYD Battery. As EV Charger we have a Keba P30 c-series and currently we drive a Polarstar. I will now provide an explanation of how to integrate these components into evcc and use them as examples.

The first configuration steps are the global site settings such as name and the existing loadpoints. A load point is the designation for your charging station, for example a garage or carport. evcc supports more complex setups such as apartment blocks with several charging points. In our case it is only one EV charger in the carport.

site:
  title: JaMa Villa
  meters:
    grid: my_grid
    pv:
      - my_pv
    battery:
      - my_battery

loadpoints:
  - title: Carport
    charger: my_charger
    vehicle: my_car

SolarEdge System Integration

#

The next step is to define the meters. These are the existing electricity meters for the different sources, but at least the solar inverter and electricity grid. Optionally, if a home battery is installed, it will be metered as well.

Our case the SolarEdge hybrid inverter with battery storage required three meter configurations:

meters:
  - name: my_grid
    type: template
    template: solaredge-hybrid
    usage: grid
    modbus: tcpip
    id: 1
    host: modbus-proxy
    port: 1502
    timeout: 10s
  - name: my_pv
    type: template
    template: solaredge-hybrid
    usage: pv
    modbus: tcpip
    id: 1
    host: modbus-proxy
    port: 1502
    timeout: 10s
  - name: my_battery
    type: template
    template: solaredge-hybrid
    usage: battery
    modbus: tcpip
    id: 1
    host: modbus-proxy
    port: 1502
    timeout: 10s

As you can see as host address I do not use the IP address of the inverter directly, but the host name of a “ModBus proxy”. This is necessary because the SolarEdge inverters only allow one client on the ModBus server. As I had already integrated the SolarEdge inverter directly into Home Assistant, I had to find another solution. A ModBus proxy makes it possible for multiple clients to access a ModBus server, even if this server did not originally support this. There are several options for a ModBus proxy, I use a separate Home Assistant AddOn, but evcc can also take over this task.

The configuration of other solar inverters, especially via ModBus, is very similar.

Once the meters are configured the configuration can be checked via the following command:

/app # evcc -c /homeassistant/evcc.yaml meter
[main  ] INFO 2025/07/05 17:07:51 using config file: /homeassistant/evcc.yaml
[db    ] INFO 2025/07/05 17:07:51 using sqlite database: /root/.evcc/evcc.db
my_pv
-----
Power: 1748W

my_battery
----------
Power:        -0W
Soc:          99%
Controllable: true

my_grid
-------
Power:          -818W
Energy:         23571.0kWh
Current L1..L3: -1.78A 0.817A -2.18A
Voltage L1..L3: 227V 228V 229V
Power L1..L3:   -358W 14W -479W

If you are, like me, run evcc via the Home Assistant AddOn you need to use Docker command to open a shell first, this is described here.

Keba P30 Charger

#

The next and most important device we need to configure is the charging station for our electric vehicle.

chargers:
  - name: my_charger
    type: template
    template: keba-modbus
    modbus: tcpip
    id: 255
    host: 192.168.1.111
    port: 502
    welcomecharge: true

Like the majority of chargers, our Keba P30 c-series Wallbox is also addressed via Modbus TCP. Integration is very simple, you just have to use the correct configuration template and specify the IP address. A sponsor token is always required for a Keba charging station, like for many other charger brands as well.

A special feature of our charger is the authorisation to unlock the car charging. This is valid for 1 minute after the charging station has been activated. If no charging is started during this time, it expires and you have to re-authorise yourself with an RFID card or app. evcc therefore starts a ‘welcome charge’ so that the wallbox is not blocked again after 1 minute.

Unlocking the EV charger can be automated very easily via Home Assistant, with that no RFID card or charger app is needed.

There is also a check command for the charger. In my case the output looks like this:

/app # evcc -c /homeassistant/evcc.yaml charger
[main  ] INFO 2025/07/05 17:10:23 using config file: /homeassistant/evcc.yaml
[db    ] INFO 2025/07/05 17:10:23 using sqlite database: /root/.evcc/evcc.db
Power:          0W
Energy:         8071.9kWh
Current L1..L3: 0A 0A 0A
Charge status:  B
Status reason:  unknown
Enabled:        false
Identifier:     AABBCCDD
Features:       [WelcomeCharge]

Polestar Integration

#

Most chargers do not have the capability to read the State of Charge (SoC) of the car. That’s why we also want our car to be integrated with the evcc. The software can then communicate directly with the vehicle via the manufacturer’s cloud service. A car integration is not strictly necessary and guest cars can be charged as well. However, if you own several vehicles and want to allocate the charging sessions and costs to the respective vehicle, the configuration is required. It also allows you to setup charging plans.

The Polestar integration, similar to other cars as well, provides state of charge, charging status, and remaining range. This enables evcc to calculate optimal charging schedules and stop charging at predetermined levels.

The config looks like:

vehicles:
  - name: my_car
    type: template
    template: polestar
    user: abcd@gmail.com
    password: my_password
    title: Polestar
    capacity: 100
    identifiers:
      - AABBCCDD # RFID token ID

The capacity is important here as this can not be automatically detected. In some cases, depending on the car brand, there is also a range of advanced options for the vehicle.

Similarly to the above, the vehicle configuration can also be checked via the command line:

/app # evcc -c /homeassistant/evcc.yaml vehicle
[main  ] INFO 2025/07/05 17:23:39 using config file: /homeassistant/evcc.yaml
[db    ] INFO 2025/07/05 17:23:39 using sqlite database: /root/.evcc/evcc.db
Soc:           90%
Capacity:      100.0kWh
Charge status: A
Range:         553km
Odometer:      9999km
Finish time:   2025-07-05 17:24:00 +0200 CEST
Identifiers:   [AABBCCDD]

Energy Tariff

#

In contrast to other countries, dynamic electricity tariffs are not yet widespread in Germany. There is a lack of infrastructure here and our electricity meters are not yet suitable for this. I have already ordered a new meter from our grid operator, but it will probably be a few months before it is installed.

evcc supports dynamic electricity tariffs in various countries and from various providers. When combined with charging plans, evcc automatically schedules charging sessions during low-price periods while still prioritizing solar energy. But we have to live with a fixed electricity tariff. The configuration for this is super simple:

tariffs:
  currency: EUR
  grid:
    type: fixed
    price: 0.30 # EUR/kWh
  feedin:
    type: fixed
    price: 0.09 # EUR/kWh

It’s Alive! Lets charge.

#

And that’s it. The complete configuration took about 30 minutes. I already had all the information for the respective devices available. I was able to copy most of it directly from Home Assistant.

Now it’s time to connect the vehicle to the EV Charger and start the first charging process. Ideally on a sunny day. If everything is configured correctly, evcc should now start correctly and in the user interface we should be able to see the power generation data, the consumption, the status of the house battery and, most importantly, the charging process of the vehicle.

evcc - car charging user interface
evcc - car charging user interface

Conclusion: A Game-Changer for Smart Solar Charging

#

evcc is exactly what smart home technology should be: intelligent, automated, and genuinely useful.

It transforms our EV charging into a seamless process that optimizes for cost, environment, and convenience. For anyone with solar panels and an electric vehicle, evcc is not just recommended – if you as me – it’s essential.

What are your thoughts or experiences with smart charging?
